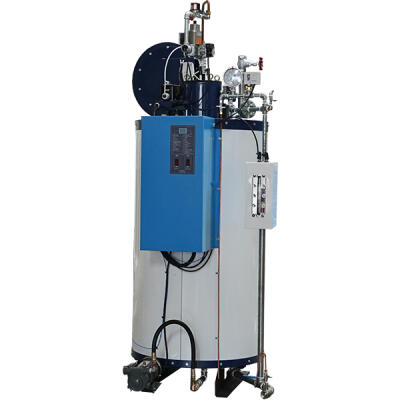

GAS-FIRED / 200G
200 kg/h
Manufacturer-listed actual evaporation*
TAIWAN SHIN CHIAO / PRODUCT RANGE
Equipment for Your
Steam Requirements
Explore the manufacturer’s published range, then discuss the equipment and configuration suited to your operation in Singapore or Johor Bahru.
Home01 / GAS-FIRED STEAM BOILERS
G Series
Seven published models, from 200G to 2000G. Compare steam output and installation dimensions before discussing a specific configuration.

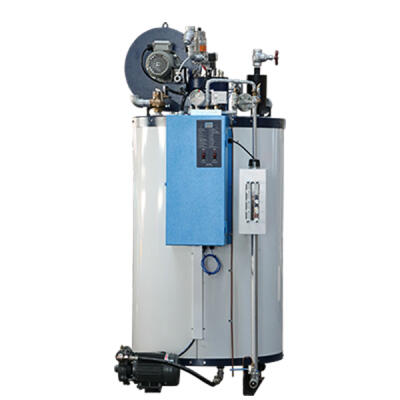

GAS-FIRED / 500G
500 kg/h
Manufacturer-listed actual evaporation*
GAS-FIRED / 1000G
1,000 kg/h
Manufacturer-listed actual evaporation*
GAS-FIRED / 2000G
1,990 kg/h
Manufacturer-listed actual evaporation*
Published Model Comparison
On smaller screens, scroll the table horizontally to see all specifications.
| Model | Actual evaporation* kg/h | Max. pressure kgf/cm² | Efficiency* % | Electrical power kW | L × W × H mm | Details |
|---|---|---|---|---|---|---|
| 200G | 200 | 10 | 92 | 1.1 | 1200 × 850 × 2000 | View modelOriginal dataEnquire |
| 350G | 350 | 10 | 94 | 1.7 | 1290 × 950 × 2000 | Original dataEnquire |
| 500G | 500 | 10 | 94 | 2.45 | 1290 × 950 × 2000 | View modelOriginal dataEnquire |
| 750G | 750 | 10 | 94 | 3.9 | 1615 × 1060 × 2200 | Original dataEnquire |
| 1000G | 1,000 | 10 | 97 | 4.6 | 2280 × 1260 × 2220 | View modelOriginal dataEnquire |
| 1500G | 1,500 | 10 | 98 | 7.9 | 1980 × 2090 × 2270 | Original dataEnquire |
| 2000G | 1,990 | 10 | 98 | 11.4 | 1980 × 2090 × 2270 | View modelOriginal dataEnquire |
Read the ratings with their conditions
*The gas-boiler pages rate actual evaporation at a feedwater temperature of 15°C and steam pressure of 5 kgf/cm². Published efficiency uses the manufacturer’s stated test basis; it is not a guaranteed result for every installation. See each original page for fuel, test conditions and tolerances.
The source pages list three-phase 220V / 60Hz supply. The required electrical supply, gas conditions, operating pressure and installation requirements must be confirmed for your site. The published maximum pressure is not a site-specific approved operating pressure.
2000G is listed at 1,990 kg/h. Model names should not be used in place of the published output. Product specifications may change; confirm the final manufacturer data when requesting a quotation.
02 / OIL-FIRED STEAM BOILERS
Diesel & Heavy Oil Ranges
The manufacturer lists separate diesel and heavy-oil ranges. Fuel suitability, configuration and local supply scope require project-specific confirmation.
Diesel Steam Boilers
Published range: 100K to 2000K.
| Model | kg/h | Max. pressure kgf/cm² |
|---|---|---|
| 100K | 100 | 10 |
| 200K | 200 | 10 |
| 300K | 300 | 10 |
| 500K | 500 | 10 |
| 750K | 750 | 10 |
| 1000K | 1,000 | 10 |
| 1500K | 1,500 | 10 |
| 2000K | 1,990 | 10 |

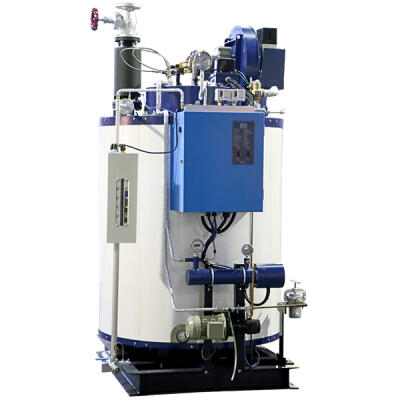

Heavy Oil Steam Boilers
Published range: 300H to 2000HS.
| Model | kg/h | Max. pressure kgf/cm² |
|---|---|---|
| 300H | 300 | 10 |
| 500H | 500 | 10 |
| 750H | 750 | 10 |
| 1000H | 1,000 | 10 |
| 1500HS | 1,500 | 10 |
| 2000HS | 1,990 | 10 |
The oil-boiler tables label the evaporation row 相當蒸發量; retain the manufacturer’s rating basis when comparing with other equipment. The original heavy-oil page contains a model-prefix note that differs from its table headings; the table’s model identifiers are shown here.
03 / CLEAN STEAM

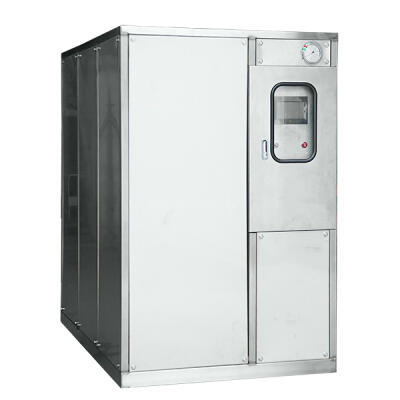

Clean Steam Generators
The manufacturer’s catalogue lists 100kg, 200kg, 300kg, 500kg and 1000kg variants. Detailed operating ratings and configuration must be confirmed for the selected model.
Define Your Process Requirements
Provide your required steam quality, output and application. RUI DING can coordinate a model enquiry with the manufacturer.
The catalogue labels are reproduced as listed; they are not presented here as verified hourly output or a certification of steam purity.
04 / STEAM & PROCESS EQUIPMENT
Supporting Food Processing
The published range includes steam-heated cooking equipment, mixers, steam cabinets and stainless-steel tanks. Confirm which equipment RUI DING supplies for your project.
MANUFACTURER PRODUCT
Steam Pressure Cookers
Steam-heated pressure cooking equipment for food preparation and processing.
- Published vessel capacity
- 200–1,000 L; larger sizes by enquiry
- Material
- SUS304; SUS316 option
RELATED CATALOGUE CATEGORIES
Cooking & Supporting Equipment
- Steam-heated tilting kettles
- Semi-automatic and automatic steam mixers
- Gas-heated kettles and mixers
- Steam cabinets and stainless-steel tanks
- Boiler water-treatment products
Ask for model details and regional availability before specifying equipment.
Explore the manufacturer catalogueRetort Project Enquiries
For a retort project, contact RUI DING to confirm the equipment range, process requirements and available technical documentation. The steam pressure cooker above is identified by its manufacturer’s product name; a validated retort sterilisation system is not assumed.
TECHNICAL DOCUMENTATION
Request the Right Documents
Use the manufacturer links above to review the published specifications. For a current brochure, dimensional drawing or regional configuration sheet, email RUI DING with your selected model.
Request Product DocumentsProduct photographs: Taiwan Shin Chiao. Downloadable brochures will be added when the files are supplied.
PROJECT ENQUIRIES
Discuss Your Steam Requirements
Tell us your application, steam demand and project location.
